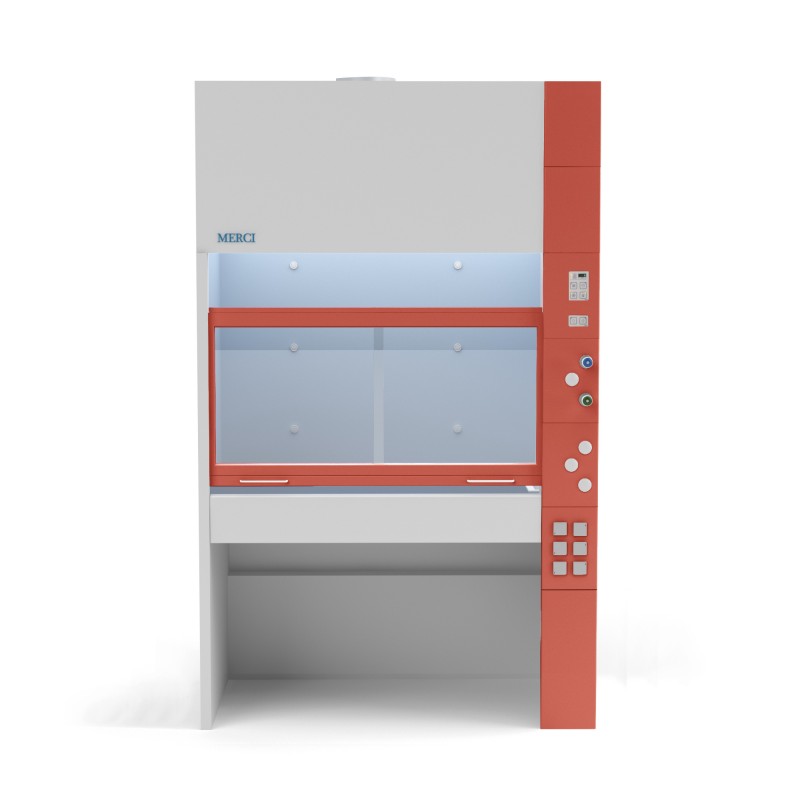

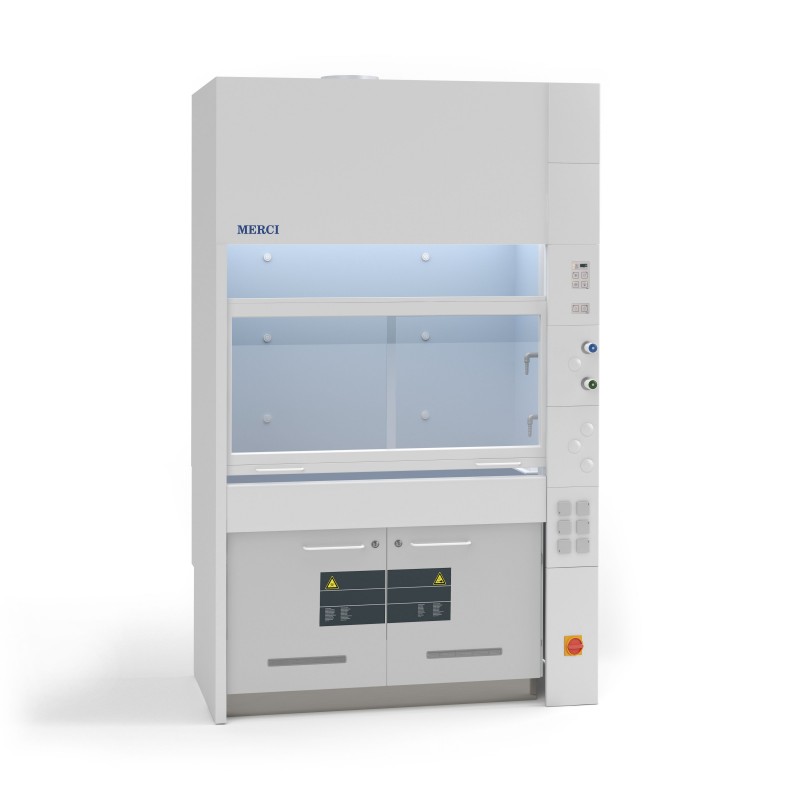

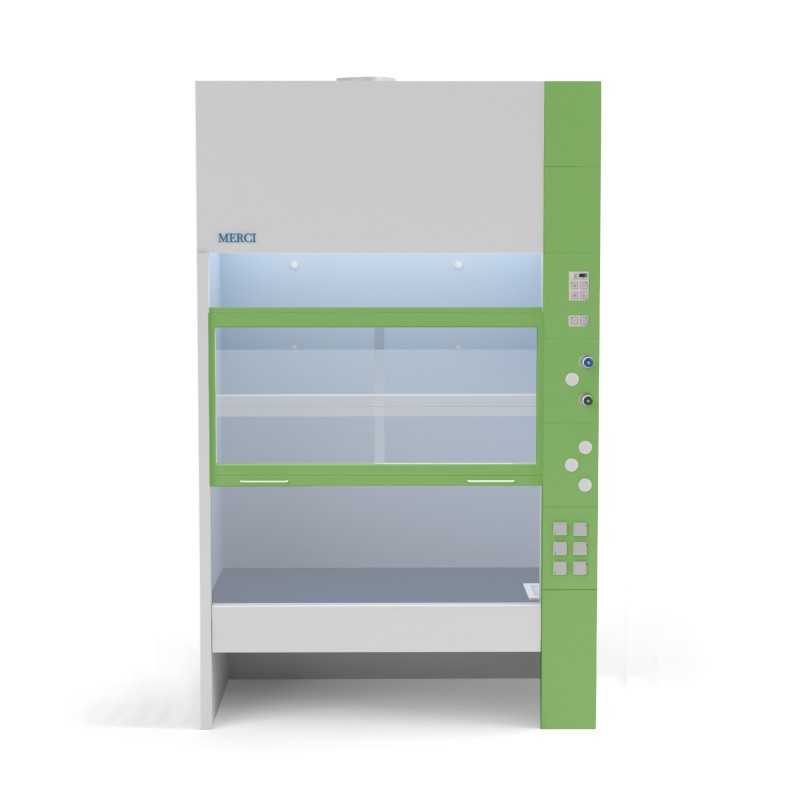

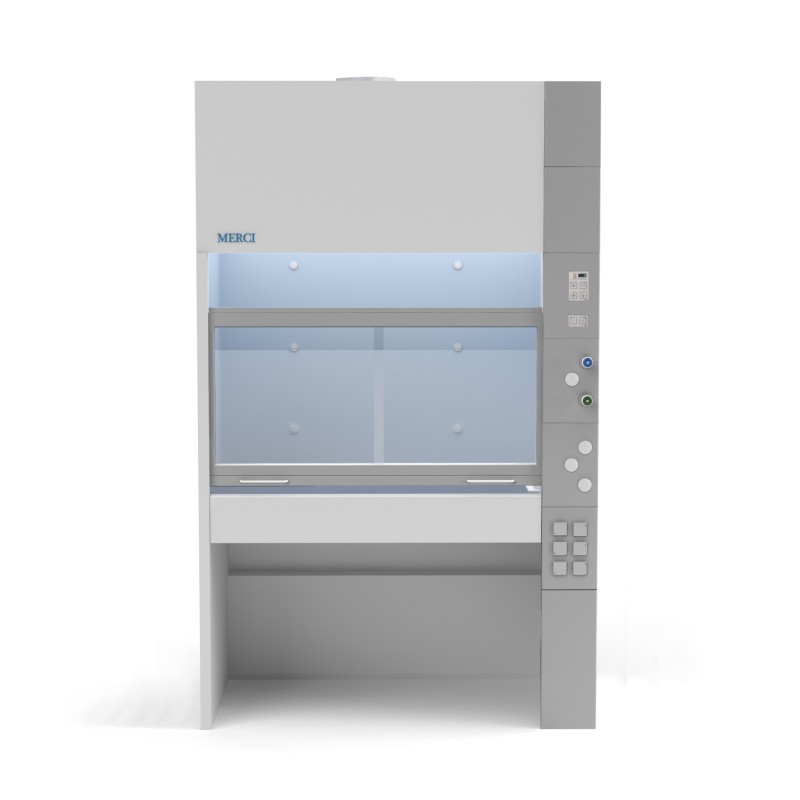

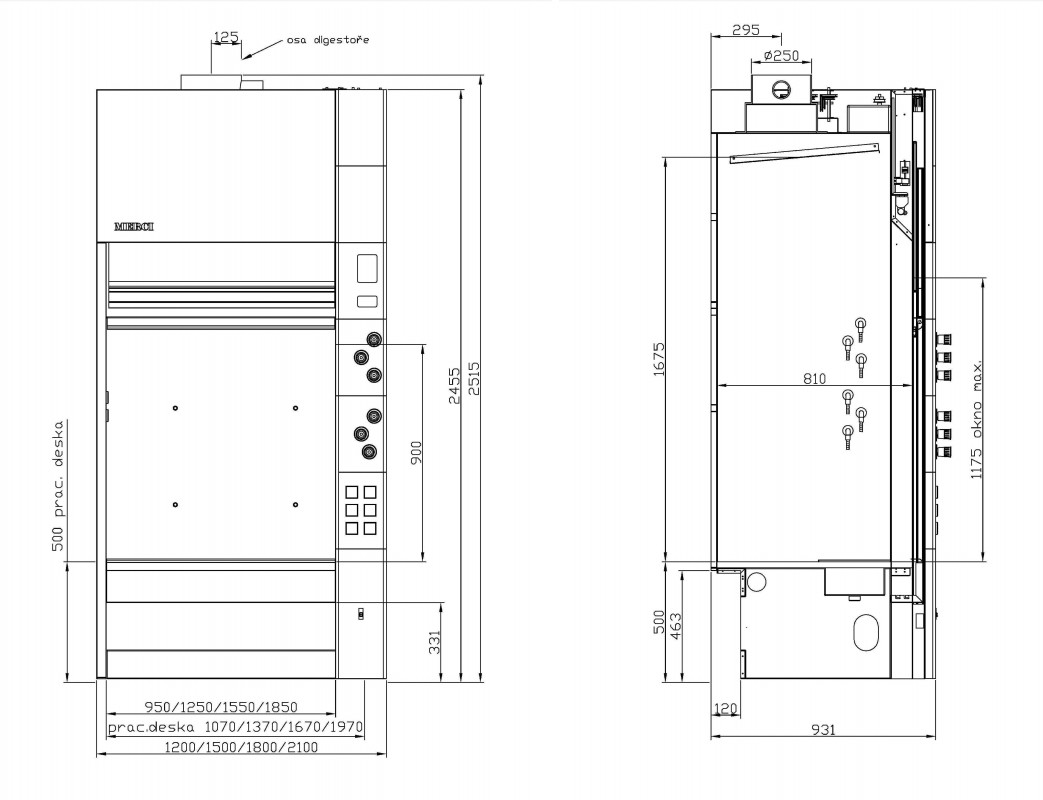

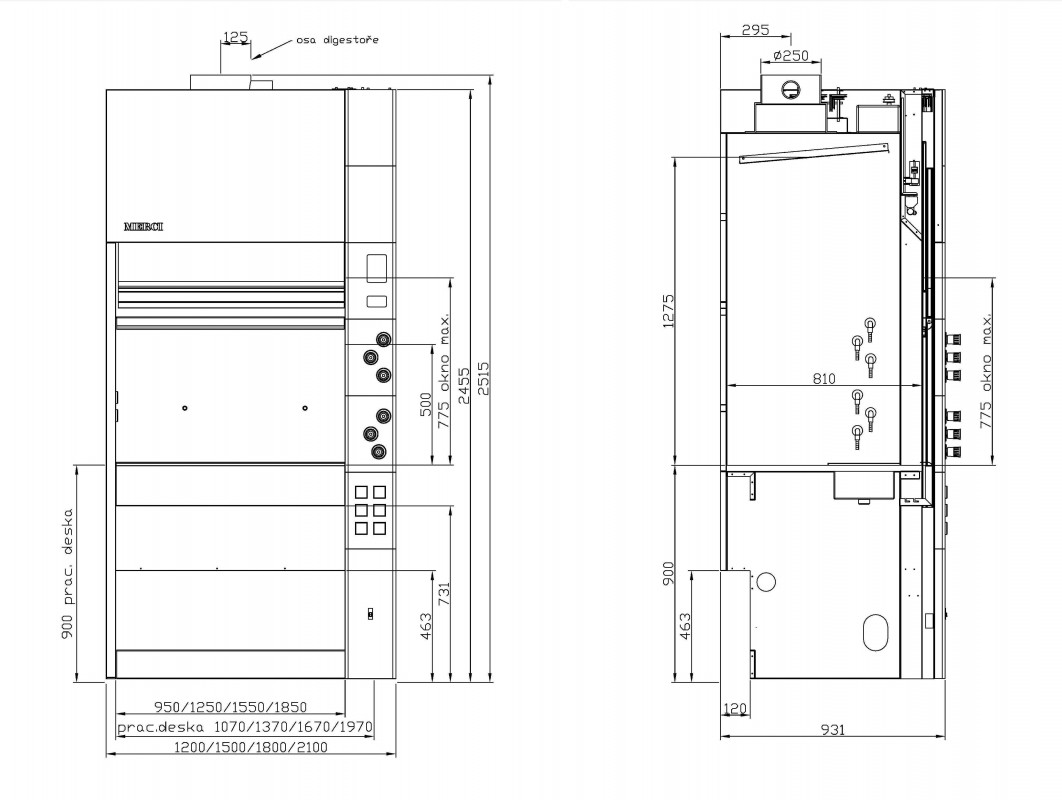

Basic parameters of fume cupboards MERCI® N
| Width of the fume cupboard | 1200, 1500, 1800 a 2100 mm |
| Depth of the fume cupboard | 930 mm |
| Height of the fume cupboard | 2455 mm |
| Height of the worktop | 900 a 500 mm |

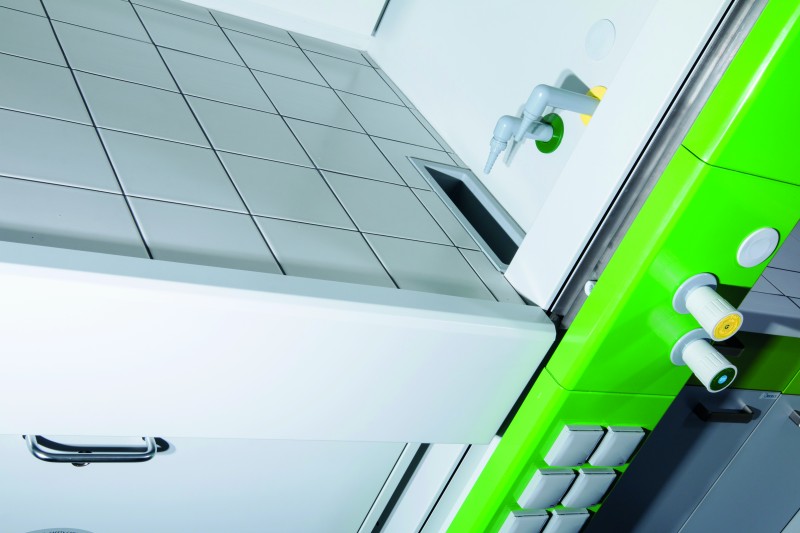

| Worktop - materials | ceramic, glass, acid-resistant tiles, stainless steel AISI 316, high-pressure laminate HPL |
| Worktop - width | 1070, 1370, 1670, 1970 mm |
| Types of internal lining | ceramic, glass, stainless steel AISI 316, polypropylene, high-pressure laminate HPL |

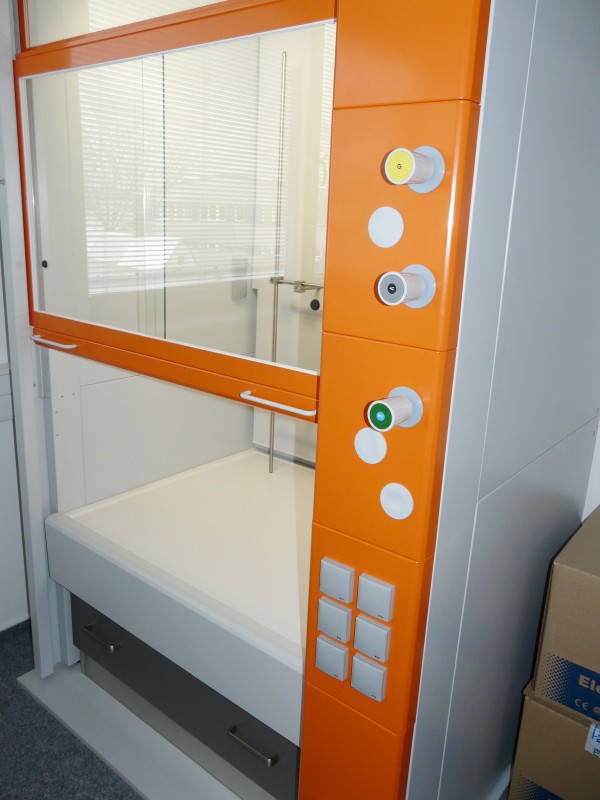

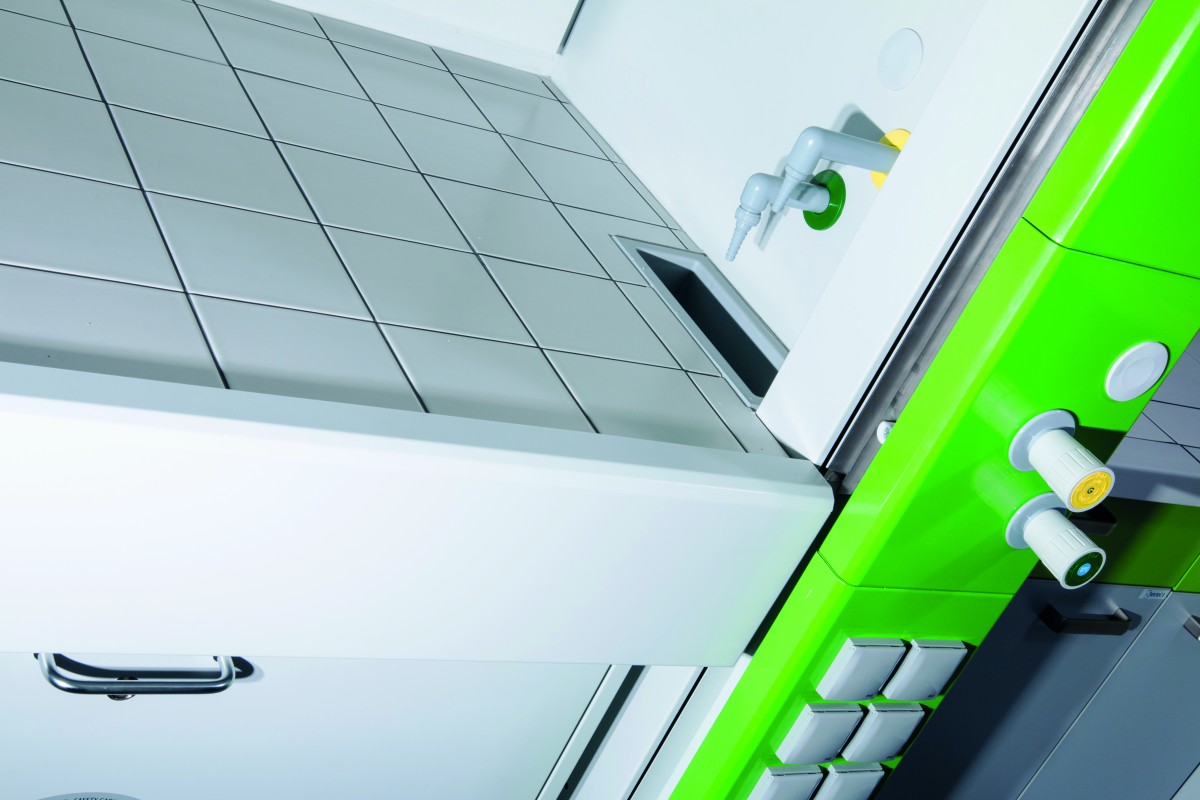

Optional fittings with media
A number of options of fitting and valves with media will meet almost any requirement, and this can be changed variably thanks to a flexible service cassette system of the front side of fume cupboard. The same wide possibilities are provided in the case of constructional connecting of fume cupboards to media distributing lines inside the building.

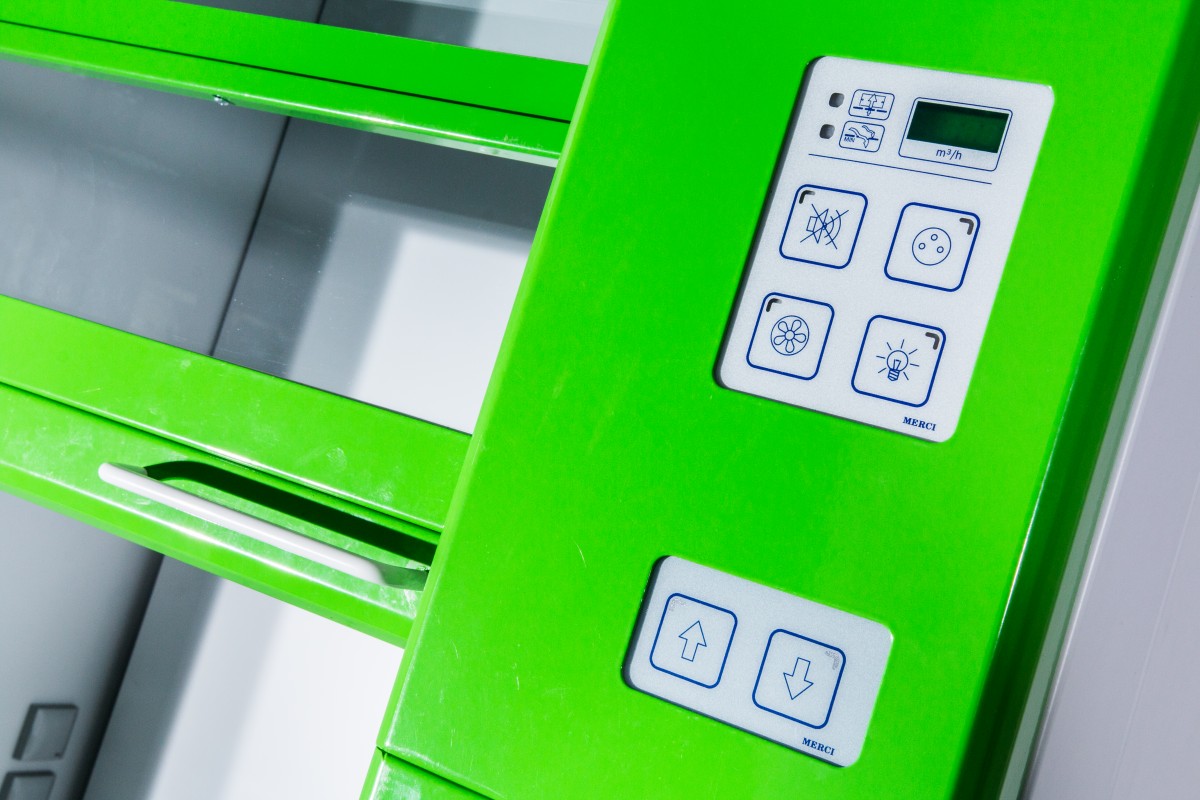

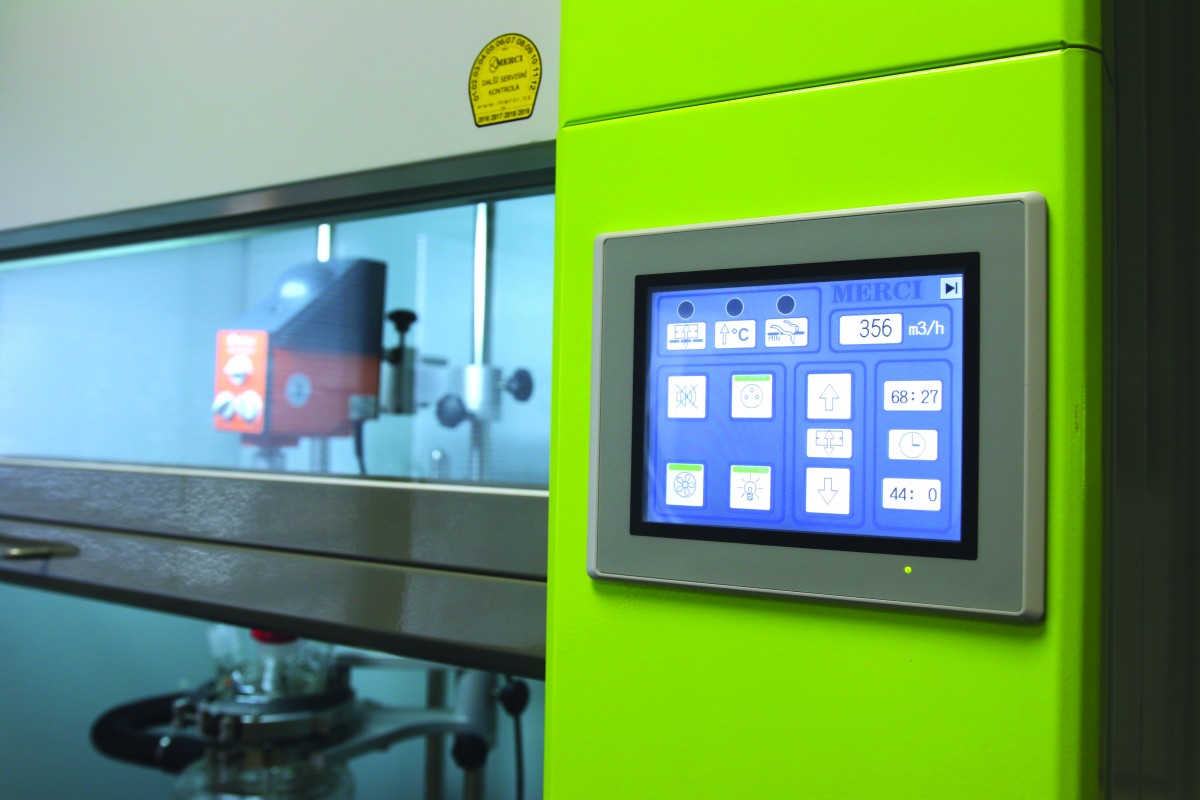

Control

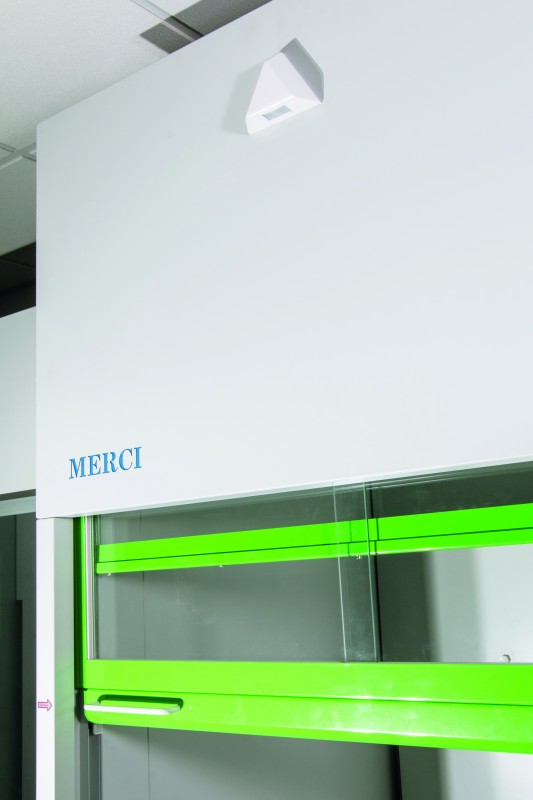

Electronic controlled fume cupboards MERCI® N are equipped with an optoelectronic safety bar. In the case of special applications, it is also possible to equip fume cupboards MERCI® N with foot-controlled moving of the working sash.
